Yeastar TE200 VoIP PRI Gateway Kenya



Yeastar TE200 VoIP PRI Gateway Kenya

The Yeastar TE200 VoIP PRI Gateway Kenya offers a perfect VoIP communication solution for both small and medium-sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.

Description

Yeastar TE200 VoIP PRI Gateway Kenya

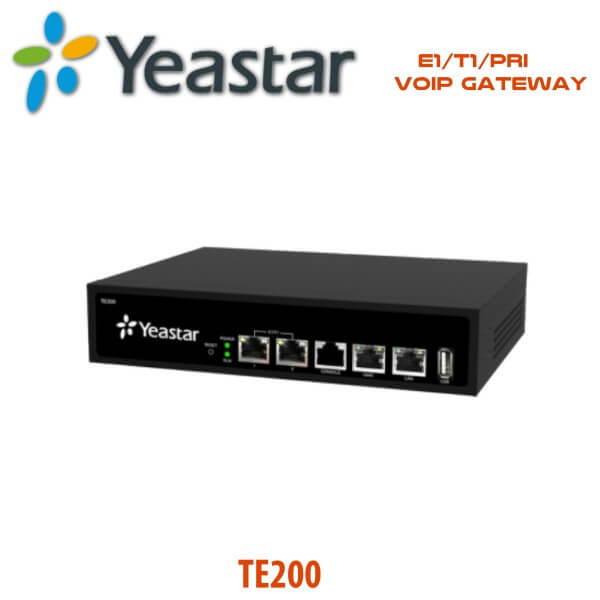

The Yeastar TE200 is a dual-port E1/T1/J1 VoIP PRI Gateway in Kenya which supports a maximum of up to 60 concurrent calls. Designed to bridge the gap between E1/T1/J1 and VoIP networks, the Yeastar TE200 can be integrated into an existing network so as to achieve cheaper communication means through SIP trunking. It provides SMBs with affordable additions to legacy telephone systems so as to deliver the true benefits of using a VoIP system. Moreover, the Yeastar TE200 PRI Gateway Kenya has the ability to connect VoIP systems with  E1/T1/J1 service from legacy carriers.

Yeastar TE200 VoIP PRI Gateway Kenya is equipped with many advanced telephony features such as trunk support, call routing rules, automatic appending and stripping of digits to dialed numbers, Caller ID name and number support, FAX support, Blacklist, Firewall, DDNS support, backup and restore, all perfect for the SMB. What’s more, the robust gateway offers the easiest possible deployment and operation which requires no technical expertise of its user.

Yeastar TE200 Key Features:

  • Software configurable E1/T1/J1 ports
  • Easy-to-navigate GUI
  • Cost-effective call routing
  • Simple installation and management
  • Interoperable with Elastix and Skype for Business
  • Compatible with various ISDN PBX, IP-PBX, and Softswitch
  • Low power consumption for your green office
  • Wide Compatibility
    • The Yeastar TE200 VoIP PRI Gateway Kenya is based on SIP RFC3261 and is therefore widely compatible with various leading platforms including Asterisk, Microsoft Lync, Trixbox, Elastix, FreeSWITCH, 3CX, and many others. It also works perfectly with various ISDN PBXs, IP-PBXs, and soft switches.
  • Least Cost Routing
    • The least Cost Routing is a way of finding a cheaper way to route phone calls during communication. A user simply analyses, selects and directs the path of outbound and inbound communications traffic while choosing the path which delivers the best call rates using the high-performing Yeastar TE100 VoIP PRI Gateway Kenya.
  • Mobile Connectivity For SMBs
    • The Yeastar TE200 VoIP PRI Gateway Kenya offers a perfect VoIP communication solution for both small and medium-sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.
  • User-Friendly Interface
    • Setting up the Yeastar TE200 VoIP PRI Gateway has been made extremely easy, thanks to its web-based configuration. A user requires no technical skills in order to operate the high-performance Gateway. It boasts of a simple and Web-based configuration that enables you to set up the Gateway within minutes.
  • Rich Quality Audio
    • The Yeastar TE200 VoIP PRI Gateway incorporates both narrowband and wideband audio codecs such as G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, and Speex, resulting in very clear audio. It also uses G168 Echo Cancellation to filter out any background and surrounding noises that may occur in noisy and busy environments.
  • Cost-Effective
    • The Yeastar TE200 PRI VoIP Gateway Kenya is an affordable IP telephony solution that does not interfere with your existing analog telephony system. It allows you to easily transform your communication experience by converting your analog telephone system to IP-based networks at an affordable cost.
  • Fax Support
    • The Yeastar TE200 PRI VoIP Gateway Kenya is configured to support T.38 Fax which enables you to create Fax-over-IP. These are simply ITU protocols that dictate how to fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.

Yeastar TE200 – Technical Specifications

Physical Interfaces

  • E1/T1/J1 port: 2
  • Dual Base-T connectors
  • TE200: 10/100/1000 Mbps
  • USB port:1

Telephony

  • Blacklist
  • Call detail records
  • Call duration limitation
  • Caller ID
  • Caller ID prefix
  • Call routing rules
  • SIP trunk support
  • SIP peer mode
  • SIP Registrar for IP phones
  • 38 fax
  • Trunk group

Signaling

  • PRI switch types: Euro ISDN, nation, Q.SIG
  • CAS: MFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela)
  • SS7: ITU, ANSI, China
  • DDNS
  • IP Blacklist
  • NAT Traversal
  • QoS/ToS
  • PPPoE
  • Static Route

System

  • Backup and restore
  • Custom prompts
  • E1/T1/J1 diagnostics
  • Firmware upgrade by HTTP/TFTP
  • Packet Capture Tool
  • System logs
  • Security: Firewall, TLS, SRTP, HTTPS
  • Web-based configuration

Applications

  • Connect legacy PBX to VoIP services
  • Connect IP-PBX to ISDN trunkings
  • ISDN connectivity for Contact Center
  • Connect legacy PBX to IP-PBX at the branch office
  • Interconnect multiple PABX to realize free inter-office calls

Physical

  • Dimensions: 213x160x44 mm
  • Power Supply: AC 100-240V (12V 2A)
  • Operation Range: 0°C to 40°C, 32°F to 104°F
  • Storage Range: -20°C to 65°C, -4°F to 149°F
  • Humidity: 10-90% non-condensing
