The Yealink SkySound CM20 Kenya is a top-tier ceiling microphone designed to enhance audio quality in corporate conference settings.

Description

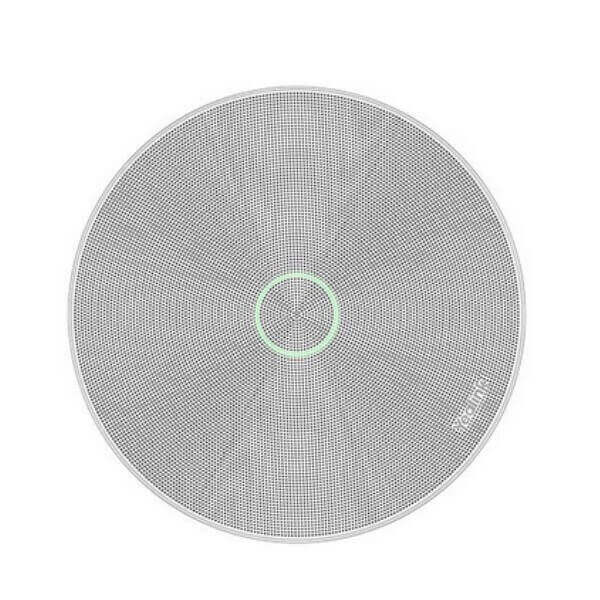

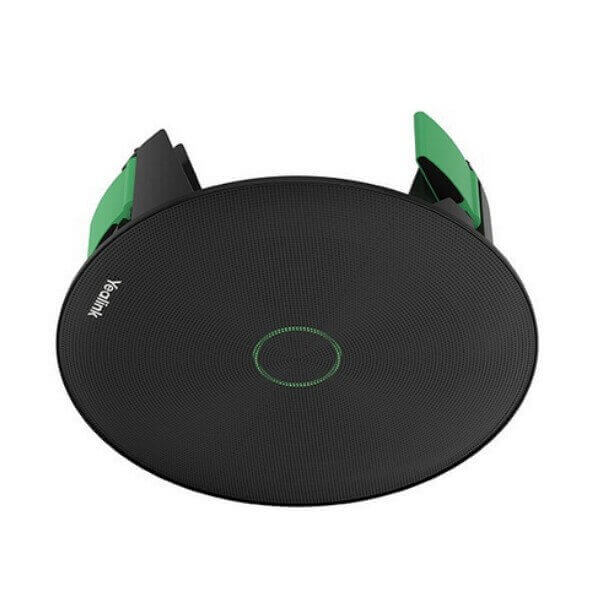

Yealink SkySound CM20 Ceiling Microphone Kenya

The Yealink SkySound CM20 Kenya is a top-tier ceiling microphone designed to enhance audio quality in corporate conference settings. With 16 omnidirectional microphones strategically positioned, it captures sound from all angles, promoting clear and inclusive conversations. It integrates smoothly with Yealink MVC systems and features DSP technology for streamlined audio processing, eliminating the need for additional peripherals. Ideal for medium to large meeting rooms, Yealink SkySound CM20 Kenya combines advanced innovation with elegant aesthetics, blending sophistication with practicality.

Features

Advanced Microphone Array : The SkySound CM20 boasts 16 omnidirectional units ensuring crystal-clear audio across 8 distinct pickup zones.

Superior Coverage : With coverage extending up to 60 square meters, it delivers top-notch full-duplex audio for spaces of up to 30 square meters, making it ideal for medium to large areas.

Intelligent Sound Processing : Leveraging Yealink’s cutting-edge technologies, it effectively eliminates noise, echo, and reverberation, ensuring impeccable audio clarity in every meeting scenario.

Intelligent Tracking : Featuring 8 beam outputs for precise speaker tracking, it seamlessly integrates with room cameras, enhancing camera tracking and elevating meeting engagement and participation

In-built DSP for Simplicity : The SkySound CM20 is equipped with an integrated DSP, ensuring seamless compatibility with Yealink MVC systems and removing the need for external audio processing.

Network and Deployment Efficiency :  This gadget seamlessly links up with audio systems compatible with AES67. Thanks to its Power over Ethernet feature, it requires just a single Ethernet cable to handle both power and audio transmission.

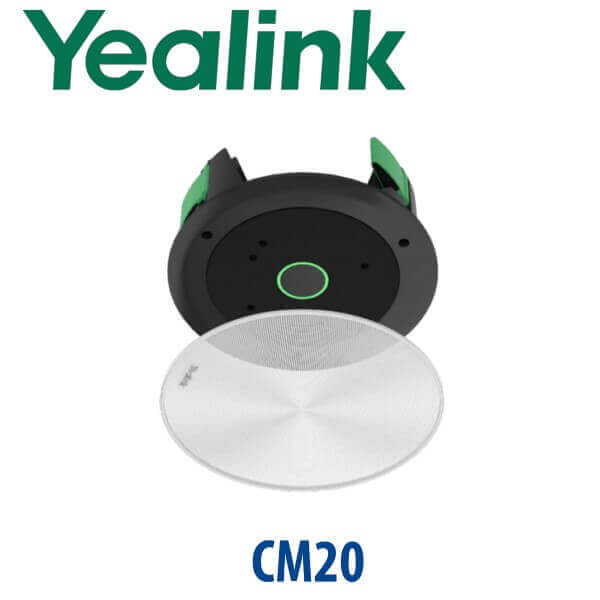

Versatile Ceiling Integration : Offers a variety of installation options, including in-ceiling, pendant, and on-ceiling, to streamline the setup process and seamlessly integrate into any environment.

Elegant and Unobtrusive Design : The item boasts a detachable mesh cover equipped with magnetic suction, offering both a stylish appearance and easy upkeep thanks to its straightforward design.

Specifications

Package Content

  • SkySound CM20 Microphone
  • White Mesh Cover (Black Optional)
  • Quick Start Guide
  • Assembly Fixing Bracket
  • Dust Cover
  • Length-Adjustable Pole (Optional)
  • Bracing Bridge*1 pair
  • Suspend Pole Adapter (Optional)
  • Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
  • Self-tapping Screw*6 (T4*30mm)
  • Machine Screw*5 (3*6PMOZN3+)
  • Bracing Bredge Screw*20 (M3*6PWMHOZN3)

Audio Specifications

  • Frequency Response : 120Hz-16kHz
  • Maximum SPL : 122dBSPL
  • Signal Noise Ratio : 94dBSPL @1kHz A-Weight
  • Sensitivity : 0 dBV/Pa 94dBSPL@1kHZ
  • Microphone : 16 omni-direction microphones
  • AEC Channel : 1 channel internal

Physical Features

  • Operating Temperature : 0-50℃
  • Storage Temperature : 0-70℃
  • Operating Humidity : 5%~90%
  • Continuous Power : 5.7W
  • Peak Power : 9W
  • Interface : 1*RJ-45
  • Power Supply : PoE (IEEE 802.3af, class 3)

Product Specifications

  • Size :
    • 223*H83mm (with cover mesh)
    • 215*H81mm (without cover mesh)
  • Weight : 615g
  • Product Color : Pearl Light Gray
  • Product Materials : ABS+PC&iron mesh

Logistic Information

  • Box Size : 398 mm*310 mm*135 mm
  • W/CTN : 2.462 kg
  • W/CTN : 3.078 kg
