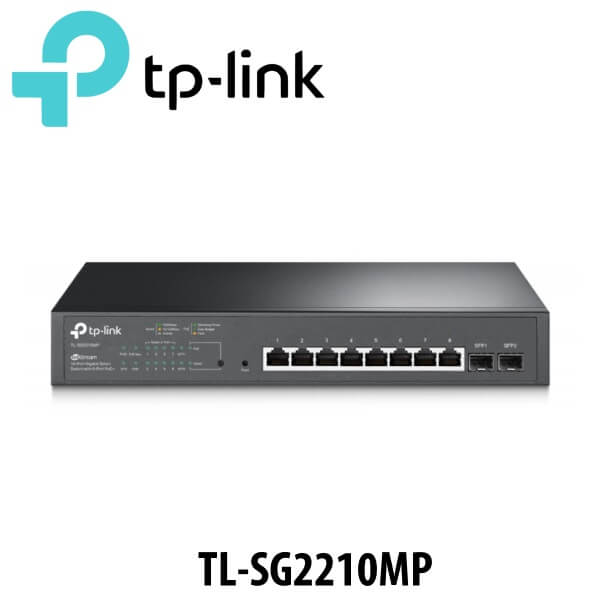

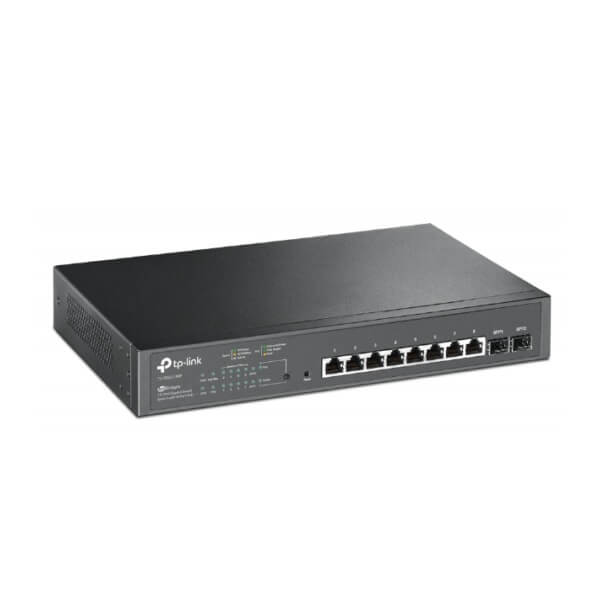

Tplink TL-SG2210MP Smart Switch Kenya

Tplink TL-SG2210MP Kenya PoE Switch is a manageable L2 switch with PoE functionality, containing 8 Gigabit LAN ports with 802.3af/at PoE support and an additional 2 Gigabit SFP ports. The switch has a total PoE budget 150W for all devices powering (Access Points, VoIP, IP cameras) over cable. Switch can be mounted in a 19″ rack and 1 fan from the side take care of cooling. Tplink TL-SG2210MP Kenya 10-Port Gigabit Smart Switch with 8-Port PoE+ 150W | 8 802.3af/at compliant PoE+ Ports | Omada SDN Platform Integration | Gigabit Ethernet Connections | IP-MAC-Port Binding | ACL | Port Security | DoS Defend | Storm Control | DHCP Snooping | 802.1X | Radius Authentication | IGMP Snooping | WEB/CLI Managed Modes

Features

150 W PoE Budget : 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
Full Gigabit Ports : 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra-convenience and easy management.
Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Centralized Management

The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. This switch works with the Omada cloud-based controller, the Omada OC300 and OC200 hardware controller, and the Omada Software controller.

Omada App

Configure, manage, and monitor your network devices from almost anywhere in the world using your smartphone or tablet.

Security Features

Tplink TL-SG2210MP Kenya protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Quiet Operation

Tplink TL-SG2210MP Kenya switch uses a single fan to help maintain optimal temperature and performance.

Tplink TL-SG2210MP Kenya has Layer 2 Features

DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation : up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol (802.1D STP, 802.1w RSTP, 802.1s MSTP); STP Security (TC Protect, BPDU Filter/Protect)
Loopback Detection
3x Flow Control
Mirroring : Port, CPU, One-to-One, Many-to-One, Flow-based, Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
1ab LLDP/ LLDP-MED

Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2× 100/1000 Mbps SFP Slots
Network Media	10BASE-T : UTP/STP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T : UTP/STP category 5, 5e or above cable (maximum 100m) 100BASE-FX : MMF, SMF 1000BASE-X : MMF, SMF
Fan Quantity	1
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60Hz
PoE+ Ports(RJ45)	Standard : 802.3at/af compliant PoE+ Ports : 8 Ports Power Supply : 150 W
PoE Ports (RJ45)	Standard : 802.3at/af compliant PoE+ Ports : 8 Ports PoE Power Budget : 150 W*
Dimensions ( W x D x H )	11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting	Desktop, 13″ or 19″ 1U rack mountable
Max Power Consumption	12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation	41.6 BTU/h (with no PD connected) 539.4 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.9 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode SP (Strict Priority) WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port/Flow based Rating Limit Smoother Performance Storm Control Multiple Control Modes(kbps/ratio) Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	DHCP Relay DHCP VLAN Relay DHCP L2 Relay Link Aggregation Static link aggregation 802.3ad LACP Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP STP Security : TC Protect, BPDU Filter/Protect, Root Protect Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring CPU Mirroring One-to-One Many-to-One Flow-Based Ingress/Egress/Both Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
L2 Multicast	IPv4, IPv6 shared multicast groups (511 groups max.) IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier Static Group Config Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
VLAN	VLAN Group Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN
Access Control List	Support up to 230 entries Time-Range Time Slice Week Time-Range Absolute Time-Range Holiday Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL Source IP Destination IP IP Protocol TCP Flag TCP/UDP Source Port TCP/UDP Destination Port DSCP/IP TOS IPv6 ACL Combined ACL Rule Operation Permit/Deny Policy Action Mirror Rate Limit Redirect QoS Remark ACL Rules Binding Port Binding VLAN Binding Actions for flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
Security	AAA 802.1X Port based authentication MAC (Host) based authentication Authentication Method includes PAP/EAP-MD5 MAB Guest VLAN Support Radius authentication and accountability IP/IPv6-MAC Binding 512 Binding Entries DHCP Snooping DHCPv6 Snooping ARP Inspection ND Detection IP Source Guard 253 Entries Source IP+Source MAC IPv6 Source Guard 183 Entries Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
IPv6	IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
Advanced Features	Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
MIBs	MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App	Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) OC300 OC200 Omada Software Controller
Centralized Management	Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2) Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller
Cloud Access	Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2) OC300 OC200 Omada Software Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2)
Management Features	Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2210MP Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature : 0–50 ℃ (32–122 ℉); Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
