Tplink TL-SF1005LP Kenya



Tplink TL-SF1005LP Kenya

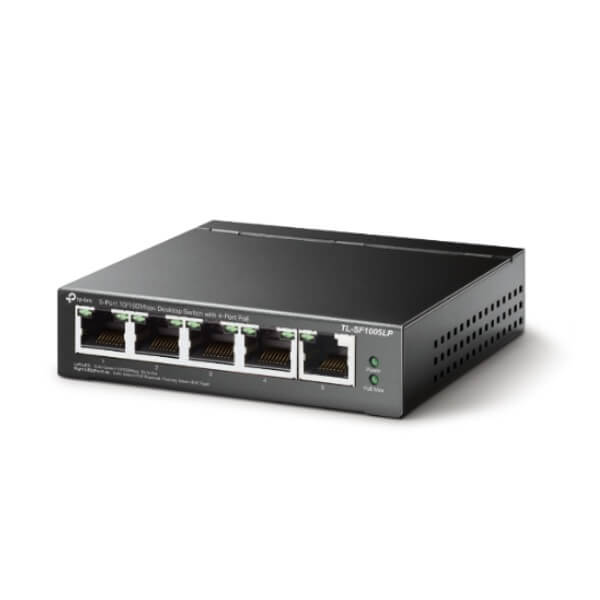

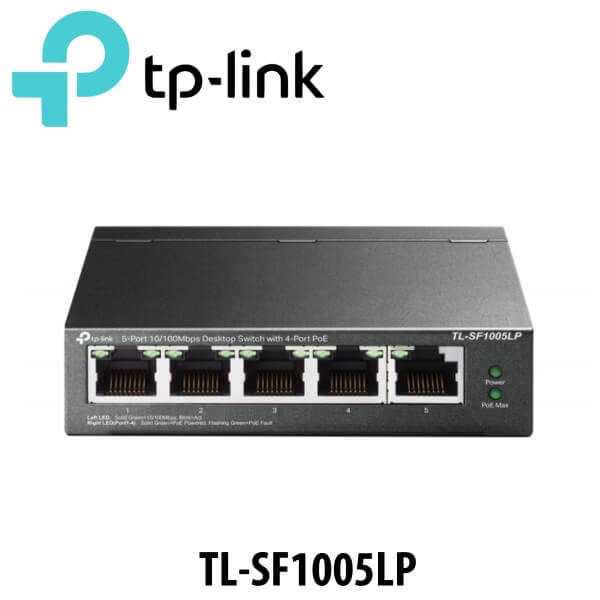

Tplink TL-SF1005LP Kenya is 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE provides reliable switch ensuring high quality of transmission, making this type of switch is perfect solution for expanding home or office network.

Description

Tplink TL-SF1005LP Unmanaged Network Switch Kenya

Tplink TL-SF1005LP Kenya is 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE provides reliable switch ensuring high quality of transmission, making this type of switch is perfect solution for expanding home or office network. Tplink TL-SF1005LP Kenya Switch has the priority function which will help protect the system when the system power is overloaded. The power consumption of the devices powered by PoE is up to 41W. The devices connected to the ports with higher priority are powered in the first place.

Features

  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Tplink TL-SF1005LP Kenya is compliant with the 802.3af PoE standard supports up to 15.4W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. Tplink TL-SF1005LP Kenya also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of Tplink TL-SF1005LP Kenya are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface
  • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
  • 6.48 BTU/h(no PD connected)
  • 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1005LP
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
