Tplink TL-POE170S Kenya



Tplink TL-POE170S Kenya

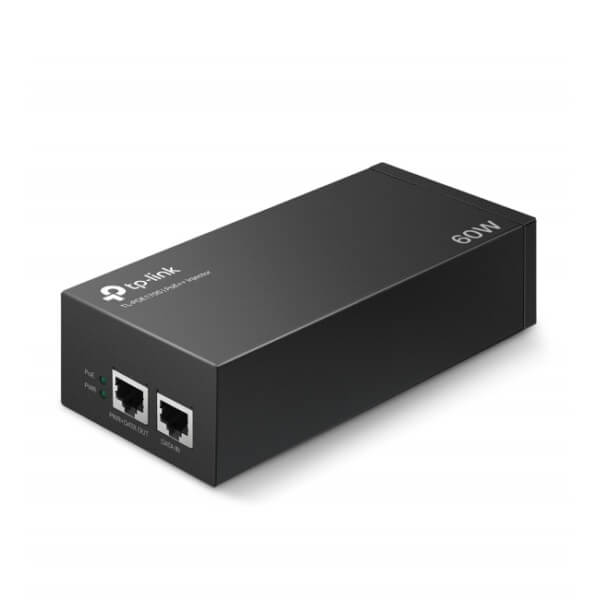

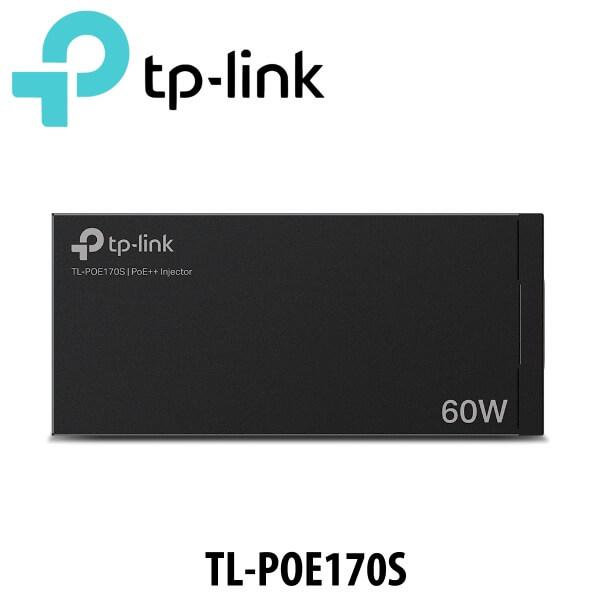

Tplink TL-POE170S Kenya PoE++ Injector from TP-Link comes in black color power devices such as IP cameras, VoIP phones, and access points. This unit will support devices that require up to 60W of PoE.

Category:

Description

Tplink TL-POE170S PoE++ Injector Kenya

Tplink TL-POE170S Kenya PoE++ Injector from TP-Link comes in black color power devices such as IP cameras, VoIP phones, and access points. This unit will support devices that require up to 60W of PoE. It complies with IEEE 802.3af/at/bt standards and supports 1000 Mb/s passthrough data rates. Tplink TL-POE170S Kenya PoE++ Injector can be wall mounted or placed on a desktop for flexible installation.

Features

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Tplink TL-POE170S Kenya PoE++ Injector automatically determines and supplies the exact power to meet the device’s need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply
  • Tplink TL-POE170S Kenya PoE++ Injector has durable metal casing

Specifications

NETWORK
STANDARDS AND PROTOCOLS IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
GENERAL
CERTIFICATION FCC, CE, RoHS
ENVIRONMENT
  • Operating Temperature : 0°C to 45°C (32°F to 113°F)
  • Storage Temperature : -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity : 10% to 90%RH non-condensing
  • Storage Humidity : 5% to 90%RH non-condensing
MATERIAL Metal Casing
PACKAGE CONTENTS
PACKAGE CONTENTS
  • PoE++ Injector TL-POE170S
  • Installation Guide
  • Power Cord
  • RJ45 Cable
HARDWARE FEATURES
NETWORK MEDIA
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 1000BASE-T : UTP category 5, 5e, 6 cable(maximum 100 m)
PORTS
  • 1 10/100/1000Mbps RJ45 data-in port
  • 1 10/100/1000Mbps RJ45 power+data-out port
  • 1 AC socket
POWER CONSUMPTION
  • Input : 100-240 V, 50/60 Hz, 1.6A
  • Output : Auto-determine the necessary power requirements (max. 60 W)
BASIC FUNCTION
  • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop installation supported
  • Plug-and-Play
DIMENSIONS ( W X D X H ) 6.1*2.8*1.7 in (155*70*42 mm)



Datasheet Download
