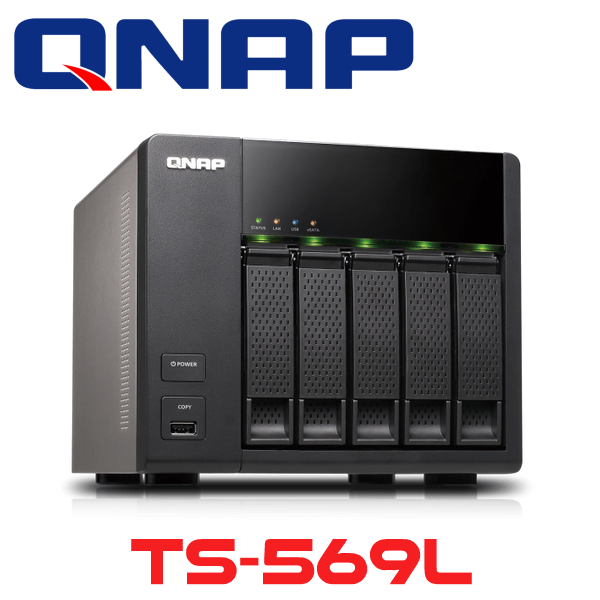

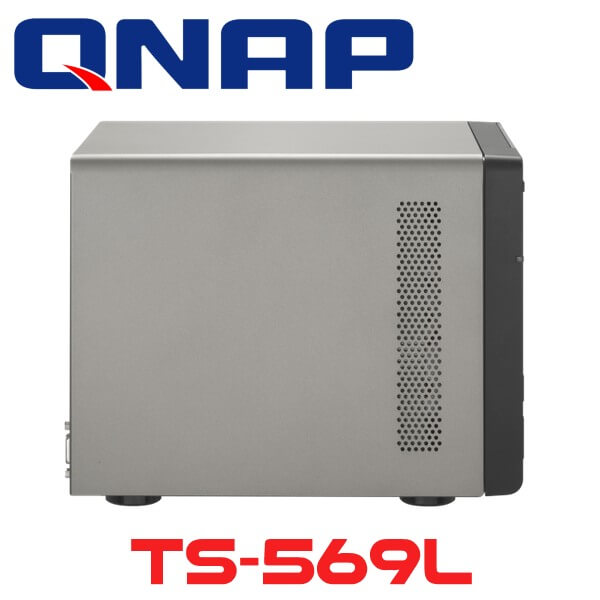

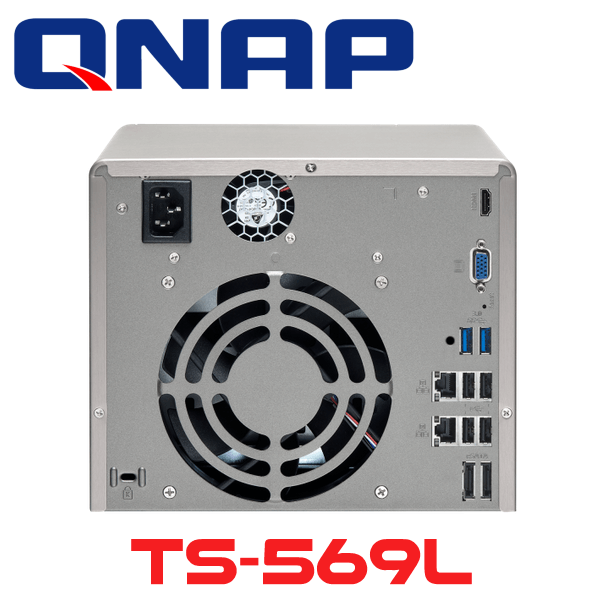

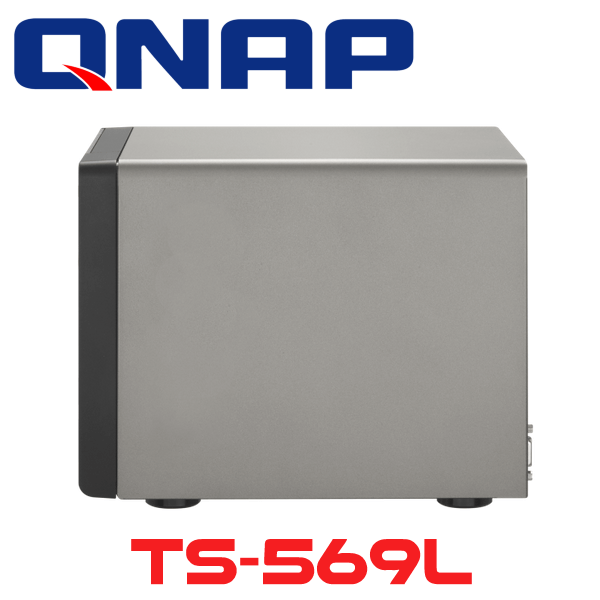

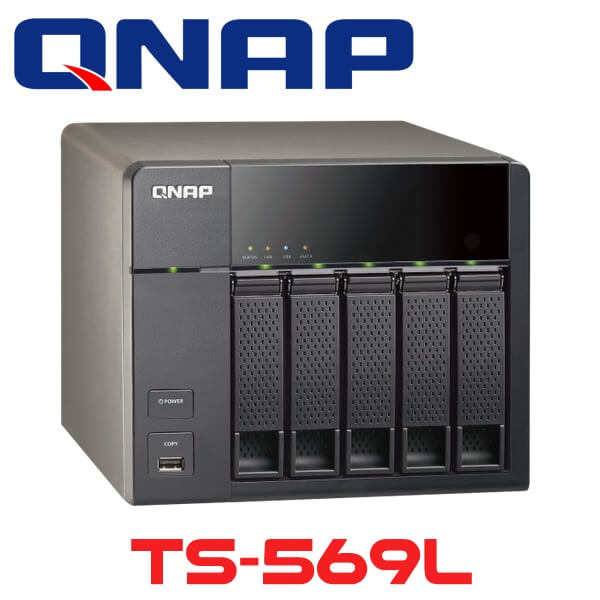

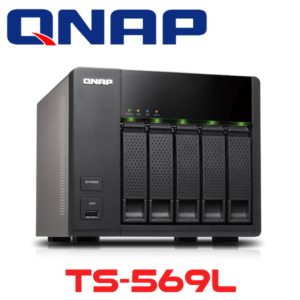

Qnap TS-569L Kenya



Qnap TS-569L Kenya

The Qnap TS-569L Kenya is a 5-Bay Turbo NAS Server featuring all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users

Category:

Description

Qnap TS-569L Kenya

The Qnap TS-569L Kenya is a 5-Bay Turbo NAS Server featuring all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. The Qnap TS-569L Kenya secure crucial business information against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certification. The Qnap TS-569 Kenya is also compatible with Microsoft Hyper-V environments allowing easy sharing of files. The intuitive MyCloudNAS service simplifies the process of publishing content present in the Turbo NAS over the Internet and helps you create a private cloud in just a few simple steps. Also equipped are Mobile apps including Qfile, Qmanager and Qmobile which provide iOS or Android users a convenient way to access and monitor the Turbo NAS anywhere.

Key Features

  • Centralized Storage and File Sharing
    • The Qnap TS-569L Kenya supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network. Qnap TS-569 also supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise.
  • Secure Measures for Data Storage and Access
    • The Qnap TS-569L Kenya allow, deny or auto block specified IP addresses or network domains, which attempt to connect to the Turbo NAS, via SSH, Telnet, HTTP(S), FTP, Samba or AFP. The Qnap TS-569L Kenya supports remote login via SSH (secure shell) or Telnet connection. It Also, supports HTTPS connection. You can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access to the NAS server via secure SSL login. Moreover, the TS-569L offers secure data transfer with SSL/TLS (explicit) encryption and supports Passive FTP port range setup. You can create multiple users and specify their password, quota and user groups by simply uploading the batch files in TXT or Excel CSV format to the NAS. Export and import of users list are also supported.
  • Backup Center
    • The Qnap TS-569L Kenya offers you flexible server backup solutions like encrypted remote replication, Real-time Remote Replication (RTRR) and cloud-based storage backup. Windows and Mac users can use QNAP NetBak Replicator utility and Time Machine respectively to back up data to the Turbo NAS. Additionally, the Turbo NAS supports third party backup software such as Veeam Backup and Replication and Acronis True Image. Qnap TS-569L Kenya offers business continuity and high availability of data by being able to recover data from disasters. Real-Time Remote Replication (RTRR) provides real-time or scheduled data replication between the Turbo NAS and a remote QNAP NAS, an FTP server or an external drive. Provides Cloud Storage Backup, The Turbo NAS supports Amazon S3, ElephantDrive and Symform cloud storage backup. It has several backup modes, including real-time, scheduled backup and versioning control, which allow the data to be restored from any point of time. All the data stored is always available to enable quick and simple remote data recovery.
  • Server Features
    • The Qnap TS-569L Kenya provides seamless file sharing across Windows, Mac, Linux and UNIX platforms. It also supports WebDAV for easy access to shared folders via HTTP/HTTPS protocol remotely. Also, establish an FTP server connection with the Turbo NAS and share files conveniently with colleagues or customers. Host multiple websites on the Turbo NAS with the built-in web server and virtual host feature. Qnap TS-569L centralizes and consolidates user authentication by maintaining a list of user accounts that are authorized for remote network access through dial-up equipment, Wi-Fi access point or VPN connections. Moreover, by collecting and storing the logs of other network devices on the Turbo NAS with the Syslog server feature, you can easily monitor the status of these devices and troubleshoot problems when necessary. The Qnap TS- 569L offers printer sharing over the network and remote printing over the Internet via IPP (Internet Printing Protocol). Print job management and Bonjour printing for Mac OS X are also supported. QNAP VPN Server supports both OpenVPN and PPTP. MyCloudNAS service and Auto Router Configuration are integrated with QNAP VPN Server. With just a few clicks, users can access all services provided by the Turbo NAS remotely and securely.
  • Convenient Wi-Fi Connection
    • Connect the Turbo NAS to the home wireless network through a USB Wi-Fi dongle for convenient access. The NAS is compatible with fast 802.11n and 802.11g dongles for Wi-Fi connection
  • MyCloudNAS Service
    • MyCloudNAS is a service which allows you to connect to your Qnap TS-569L Kenya remotely from anywhere. Various NAS services can be easily published and accessed on the Internet. You can download and upload files, back up and share your photos and music instantly, and even back up important files from the NAS to other cloud storage providers
  • Web File Manager
    • Qnap TS-569L Kenya provides Web File Manager for you to access and manage the server data anytime, anywhere by a web browser. Web File Manager supports intelligent data search, batch files upload and download, file extraction, mounting ISO files, file-level permission settings, and more
  • Wireless Data Access by Apple iPhone and Android Phones
    • QMobile is an application dedicated to iPhone, iPod touch, iPad, and Android users. You can view and play Terabytes of photos, music, and video files on the NAS by QMobile from anywhere regardless of the actual storage size of your mobile devices. You can also upload photos to QNAP NAS straightway from your iPhone for instant sharing
  • Easy to Install, Easy to Use
    • The easy-to-use wizard is included in the product CD. Just a few clicks to go through the steps, and you can complete the installation in few minutes. The Qnap TS-569L Kenya is designed with user-friendly AJAX web interface, you can easily enjoy all the features. No IT expertise required
  • Auto Network Attack Prevention
    • To prevent the Qnap TS-569L Kenya succumbing to external malicious attacks, you can create an IP filter policy to allow, deny, or auto-block the IP address or network domain which attempts to connect to the NAS via SSH, Telnet, HTTP(s), FTP, Samba, and AFP.
  • Power Management
    • Equipped with Wake-on-LAN activates option to power on the Qnap TS-569L remotely. While Configure the hard drives to enter standby mode if there is no drive access within the specified period. The flexible scheduled power on/off feature is provided for IT administrators to manage the up time of the Turbo NAS according to the working hours. The administrator can set the time for automatic system power on, power off or restart on any days of the week. Also, USB UPS devices allow users to store the data in time and avoid critical data loss when power outage occurs during data transfer.

Qnap TS-569L Kenya Specifications

CPU Intel® Atom™ 2.13 GHz Dual-core Processor
DRAM 1GB RAM (Expandable RAM, up to 3GB)
NOTE:
The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.
Flash Memory 512MB DOM
Hard Disk Drive 5 x 3.5″ or 2.5” SATA 3Gb/s hard drive or SSD
NOTE:
The system is shipped without HDD.
Hard Disk Tray 5 x Hot-swappable tray
LAN Port 2 x Gigabit RJ-45 Ethernet port
LED Indicators Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5
USB 2x USB 3.2 Gen 1 port (Back: 2)
5x USB 2.0 port (Front: 1; Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA 2 x eSATA port (Back)
Buttons System: Power button, USB One-Touch-Backup Button, Reset button
Alarm Buzzer System warning
Form Factor Tower
Dimensions 185 (H) x 210.6 (W) x 235.4 (D) mm
7.28 (H) x 8.29 (W) x 9.27 (D) inch
Weight Net weight: 4.4 kg (9.70 lbs)
Gross weight: 5.8 kg (12.79 lbs)
Sound Level (dB) HDD sleep: 14.7 dB
In operation: 21.43 dB
(with 5 x 500GB HDDs installed)
Power Consumption (W) Sleep mode: 29.1W
In Operation: 48.5W
Power-off (in WOL mode): 1W
(with 500GB HDD installed)
Temperature 0-40˚C
Humidity 5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply Input: 100-240V AC, 50/60Hz, Output: 250W
Secure Design K-lock security slot for theft prevention
VGA Reserved VGA interface for maintenance
HDMI v1.3
IR Receiver Compatible with either QNAP RM-IR001 or MCE remote controls
Fan 1 x quiet cooling fan (12 cm, 12V DC)
