Description

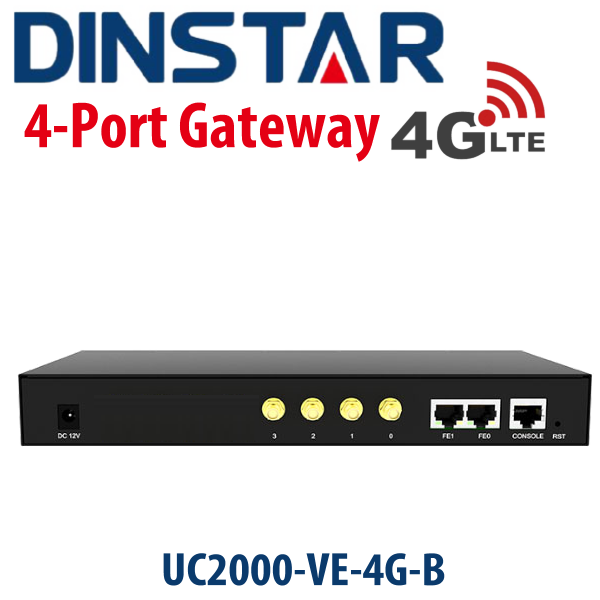

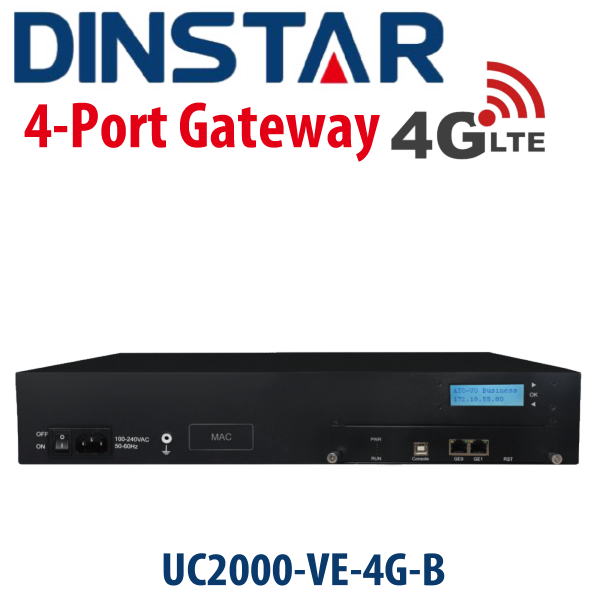

Dinstar UC2000-VE-4G-B Kenya

The Dinstar UC2000-VE-4G-B Kenya is a 4 Port GSM VoIP Gateway featuring multi-functional gateway that effectively implement calls between 2G/3G mobile network and VoIP network. It is equipped with new designed pop-up SIM card slot, users are able to change SIM card easily without dismantling equipment. The Dinstar UC2000-VE-4G-B GSM VoIP Gateway also boasts of opened API, allowing users to develop their own application software and send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. Dinstar UC2000-VE-4G-B has great performance software features and advance hardware structure design. Investing in Dinstar UC2000-VE-4G-B GSM VoIP Gateway is affordable at low cost providing easy and flexible IP telephony solution to enterprise, SMEs and business offices and other public organizations.

Key Features

• 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE
• Support to different mobile networks:
• GSM: 850/900/1800/1900MHz;
• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

Technical Specifications

Voice Processing

• Protocol: SIP v2.0, RFC3261
• Codecs: G.711A/U law, G.723.1, G.729A/B
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Dynamic Jitter Buffer
• DTMF: RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT: STUN, Dynamic NAT, Static NAT

Mobile

• SIM Interface: 1.8v, 3.0v SIM Interface
• Frequency Range:

GSM: 850/900/1800/1900MHz;

CDMA: 800MHz

WCDMA:850/900/1900/2100MHz

• USSD Encoding: Unicode/ASCII
• HTTP API for SMS
• Polarity Reversal
• PIN Modify
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Call Waiting/Call Back
• Call Forward
• GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Software Features

• Calling Type: Mobile to VoIP, VoIP to Mobile

• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Call Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP
• Signaling & RTP Encryption
• SMPP for SMS

Network

• Static IP, DHCP Client, PPPoE
• Network Protocols:
• TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
• Static/Dynamic ARP Request
• PPTP VPN

Physical Interface

• Mobile: 4/8 Channels
• Antennas Connectors: SMA
• Ethernet Interfaces:2*10/100 Base-T, RJ45
• LED Indicators: Power, RUN, Signal Strength Indicators
• Console:1* RS232 115200bps

Environmental

• Power Supply

Input:100-240V,50-60Hz

Output: DC12V 4.0A

• Power Consumption:

UC2000-VE-4G: 20w

UC2000-VE-8G: 25w

• Temperature(Operation): 0 ℃ ~ 45 ℃(Storage): -20 ℃ ~80 ℃
• Operation Humidity: 10%-90% No Condensation

Dimensions

• Dimension(W/D/H): 250*156*32.5mm
• Weight: 1.069kg
• Package Weight: 2.05kg
